Bermuda

Bermuda

 Type: Residential/Light Commercial
 Heat Exchanger: Cast Iron
 Fuel: Gas Fired (Natural or LP)
 Input: 69 - 379 MBH*
 Efficiency (AFUE): 80.0% - 82.2% **
 Venting: Atmospheric
 Ignition: Electronic Ignition
 Trim: Steam
 Domestic Water: N/A
 Burner: N/A
 Configuration: Packaged
 Notes: Designed for installation on combustible floors

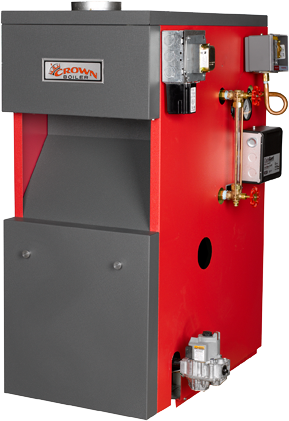

The Bermuda Series (BSI) residential/light commercial, cast iron, steam boiler is a fully-packaged, installer-ready product. The integral draft diverter provides a low profile design allowing the boiler to be installed in areas requiring a low clearance. This atmospheric, gas-fired boiler is for use with a conventional chimney. The Bermuda Series also comes standard with a probe-type low water cut-off safety control. The Bermuda Series is packaged with the option of either natural or LP gas as well an electronic ignition system. The heat exchangers are built with steelpush nipples below the water line where superior strength and resistance to expansion and contraction is important. Cast iron push nipples above the water line are larger than often found on similar units to provide optimum steam quality.



Notes:

*Models with inputs of 300MBH and above are considered commercial models.

**Models with inputs of 300 MBH and above are rated by combustion efficiency.
